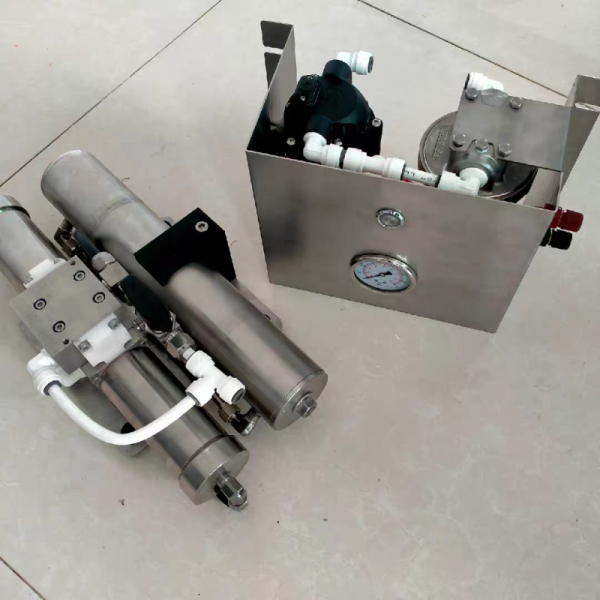

Compact Seawater Desalination Unit For Yachts
Sailboat Watermaker - Portable Seawater Desalination System
Seawater Desalter For Commercial Vessels - Puretronics
One of the most valued solutions for Nettronics' environmentally friendly yachts is the ability to produce fresh water. As a distinctive feature of environmentally friendly yachts, a yacht desalination machine can efficiently purify seawater into drinkable fresh water through reverse osmosis membranes, which reduces the amount of bottled drinking water in reserve. A desalination machine not only minimises plastic waste, but also enhances self-sufficiency.
Business Boat Desalination Machines - Nettronics
Drinking water is the source of life. Currently, 2 billion people worldwide face a lack of fresh water resources, with water scarcity concentrated in island countries, saline and alkaline areas, including ocean-going vessels, offshore drilling platforms, etc. Desalination units focus on solving drinking water problems on ships, islands, drilling platforms, and saline-alkaline areas by converting seawater into potable water.
Product Parameters of Nettronics Desalination System
| Product Model |
JC-0.5T/D |
| Water Quality |
Complies with drinking water quality standard GB5749-2022 |
| Water Production |
500 litres/hour |
| Power |
0.3KW |
| Desalination Rate |
>99.5% |
| Power Supply |
AC24V-220V / 50Hz /60HZ |
| Salinity of Produced Water |
<700mg/L |
| Protection Grade of Electric Control |
IP54 |
| System Recovery Rate |
25% (depending on temperature and water quality) |
| Dimensions |
800*400*300 (L*W*H) |
| Operating Pressure |
<6.5Mpa |
| Net Weight |
30Kg |
| Reverse Osmosis Membrane |
RO membrane shell |
| Material Composition |
SUS316 stainless steel |
System Functions
- High pressure unloading: When the high pressure pump water pressure exceeds 6.2MPa, the equipment automatically shuts down with protection action and sound/light alarm
- Low-pressure shutdown protection: When pretreatment water supply is insufficient causing high-pressure pump inlet pressure less than 0.05MPa, it automatically shuts down with protection action and sound/light alarms
- Configured with manual multi-way valve for multi-media filter cleaning when differential pressure reaches 0.1MPa
- Reverse osmosis membrane cleaning system can be configured for physical cleaning, chemical cleaning, and refilling reverse osmosis membrane components with protective fluid
Main Accessories
Inlet pump: SUS316
Multi-media filter: Ø100FRP
Security filter: 5' x 5μm, UPVC
Precision filter: 5' x 5μm, UPVC
High pressure pump: Italy imported AR brand / South pump (CNP)
Reverse osmosis membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane
Membrane shell: Chengda sea (FirstLine) FRP material
Cleaning tank: PE
Chemical cleaning device: system supporting
Electrical components: Schneider brand
Conductivity meter: Kreda brand
Factory Equipment List
- Water treatment equipment
- Product operating instructions and usage video
- Completion information (product certification, factory test report, packaging list)
- Other consumables accessories
* Water production refers to conditions of water temperature at 25℃, salt content of 35000mg/L, and operating pressure of 5Mpa.
* Equipment can be customised according to customer requirements.
Important Note: Due to product specificity, please contact our customer service before purchasing. Our team will recommend suitable products based on your water consumption and water quality requirements. To avoid future complications, please do not purchase equipment blindly. For specific specifications, parameters, or images, please contact customer service. We will answer all your questions. Thank you for supporting Nettronics Environmental Protection!
